CORNAT

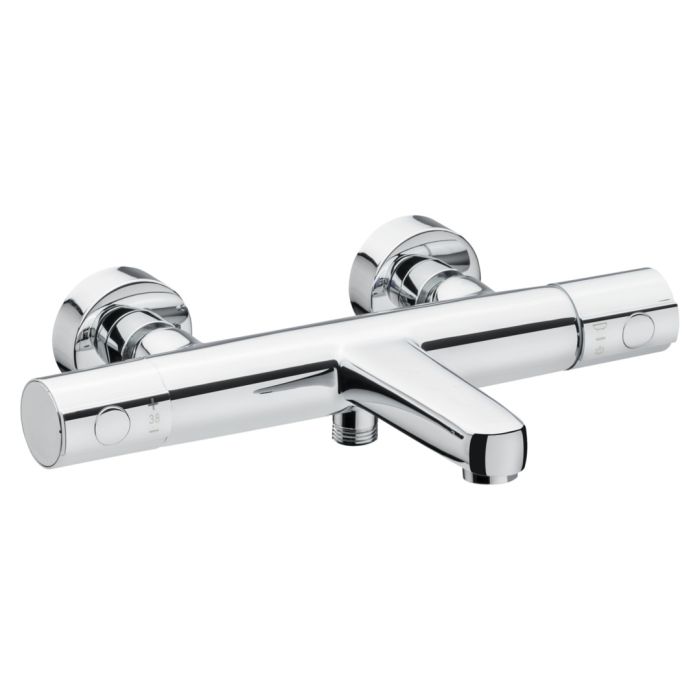

Bath mixer tap Derval, Thermostat, High pressure (pressure-resistant), chrome colored

Art. Nr.:
DER2
EAN:
4035300993932
  • High-pressure fitting for installation on a bathtub
  • Easy installation to existing connections or installation points in front of the wall
  • Temperature selection handle for convenient pre-setting of the water temperature
  • Constant temperature reduces water waste
  • Integrated safety lock at 38°C to protect against water that is too hot
The "Derval" bath fitting from Cornat suits every bathtub thanks to its classically elegant design. It is ideal for connection to a water heater or central hot water supply. The desired water temperature can be conveniently preset using the temperature selection handle. The thermostat enables a constant temperature and thus reduces water waste. The smooth operating element on the other side of the fitting allows you to easily regulate the flow rate. The hot water lock at 38° also reliably protects against water that is too hot and is therefore ideal for a household with children. The aerator automatically enriches the flowing water with air and ensures a noticeably soft jet, while at the same time reducing water consumption. Annoying flow noises are reliably minimized and uncontrolled splashing of the water is prevented.
  • High-pressure fitting for installation on a bathtub
    - Suitable for connection to a water heater or the central hot water supply
  • Easy installation to existing connections or installation points in front of the wall
  • Temperature selection handle for convenient pre-setting of the water temperature
    - Constant temperature reduces water waste
    - Integrated safety lock at 38°C to protect against water that is too hot
  • 1/2 inch shower outlet suitable for all standard shower hoses
  • Low-noise aerator ensures a soft, water-saving jet
  • Easily replaceable thermo-element - Made in Europe
  • Fitting body made of robust material for a long service life
    - Easy to clean and corrosion-resistant thanks to high-quality chrome plating
    - Classic, elegant design creates a visual highlight in your Bathroom
  • Pflegeleicht und korrosionsbeständig dank hochwertiger Verchromung
Note: The shower hose set is not included in delivery!
Hose connecting size
Hose connecting size (inch)1/2 inch
Hose connecting size (total)12,7 mm (1/2 Zoll)
Hose connecting size (mm)12,7 mm
Connection thread (ET)
Connection thread (inch)1/2 inch
Connection thread (mm)20,95 mm
Connection thread (total)20,95 mm (1/2 Zoll)
Specification
EinsatzbereichBathtub
AusstattungWith thermostat
Flow rate (Shower outlet)14,6 l/min
Flow rate (Spout)16 l/min
AusführungThermostat fitting
AuslaufgewindeM24
VarianteBath mixer tap
SeriesDerval
AnschlussHigh pressure (pressure-resistant)
Montage- / BauartWall mounting
MontageSurface-mounted
Rohranschlüsse2 hole
Stichmaß150 mm (± 10 mm)
Height68 mm
Depth214 mm
Jib length200,0 mm
Oberflächechrome-plated
Farbechrome colored
MaterialMetal
Dimension68 x 214 mm
Article typeFitting
Product nameArt. no.EANTypeLanguagesDownload
SA-0004_MANUAL.pdfZAI2, ALA2, CALM2, DER24035300994229, 4035300993833, 4035300993918, 4035300993932Operation manualDE, CZ, ES, FR, FI, GB, IT, NL, PL, PT, RO, SI, SKCON_Download
(PDF, 1528 KB)
1 Stück

Spare parts
