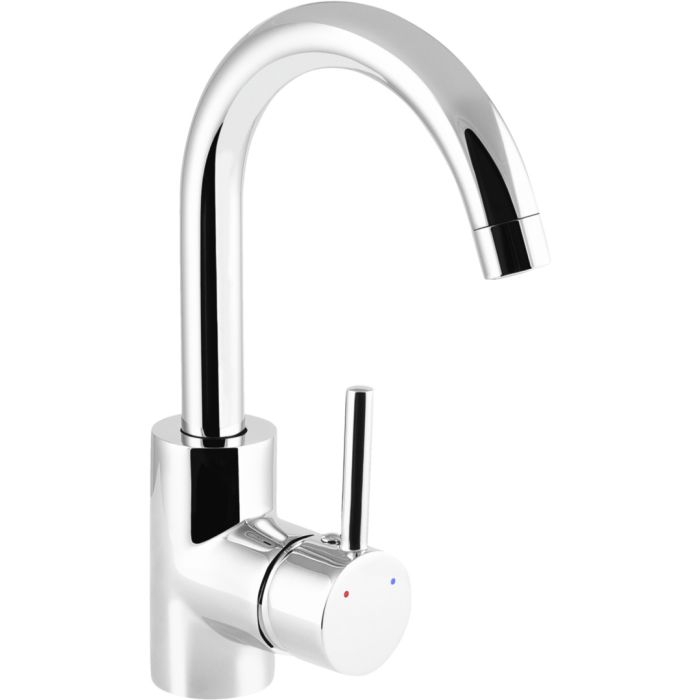

Washbasin tap-Set Fiora, Single-lever fitting, High pressure (pressure-resistant), Train sequence, chrome colored
Art. Nr.:
FIO1
EAN:
4035300827947
- Flexible connection hoses, length 450 mm
- Simple and tool-free installation thanks to shaft fastening
- Cold-start cartridge *Cold water when lever is in middle position*
- Noise class of tested water-saving aerators, flow rate approx. 7.5 ~ 9 l/min, savings approx. 40%
- Convenient operation of the drain plug thanks to push function
The "Fiora" washbasin tap from Cornat fits any washbasin thanks to its classically elegant design. It is ideal for connection to a continuous-flow water heater or central hot water supply. The smooth-running lever allows you to adjust the flow rate and temperature precisely and conveniently. The high, swivelling spout creates enormous space and provides greater flexibility, e.g. when filling a cleaning bucket. The water-saving aerator automatically enriches the outflowing water with air, ensuring a noticeably soft jet while reducing water consumption by 40%. This reliably minimises annoying flow noises and prevents uncontrolled splashing of water.
- High-pressure fitting for installation on a washbasin
- Suitable for connection to a continuous-flow water heater or the central hot water supply - Simple and tool-free installation thanks to shaft mounting
- High spout with swivel function offers maximum flexibility
- Water-saving aerator, flow rate approx. 7.5 ~ 9 l/min, savings approx. 40%
- Convenient operation of the drain plug thanks to push function
- Cold-start cartridge *Cold water when lever is in middle position*
- Valve body made of robust material for a long service life
- Easy to clean and corrosion-resistant thanks to high-quality chrome plating
- Flexible connection hoses, length 450 mm
- Fine adjustment of the desired water quantity and temperature using a lever
Note: Water-saving aerator, flow rate approx. 7.5 ~ 9 l/min, savings approx. 40%,
Cold-start cartridge *Cold water when lever is in middle position*
Cold-start cartridge *Cold water when lever is in middle position*
| Connection thread (inch) | 3/8 inch |
| Connection thread (mm) | 16,66 mm |
| Connection thread (total) | 16,66 mm (3/8 Zoll) |
| Einsatzbereich | Washbasin |
| Ausstattung | With pressurised drain set |
| Ausführung | Single-lever fitting |
| Auslaufgewinde | M22 |
| Variante | Washbasin tap |
| Series | Fiora |
| Anschluss | High pressure (pressure-resistant) |
| Montage- / Bauart | Floor mountingHigh design |
| Montage | Shank attachment |
| Ablauf | Train sequence |
| Rohranschlüsse | 1 hole |
| Connecting hose length | 35 cm |
| Height | 276 mm |
| Spout height | 194.0 mm |
| Depth | 175 mm |
| Jib length | 138,0 mm |
| Flow rate | 7,5 l/min |
| Swivel range | 360° |
| Surface | chrome-plated |
| Colour | chrome colored |
| Material | Zinc alloy |
| Dimension | 276 x 175 mm |
| Article type | Fitting |
| Connection thread (mm) | 16,66 mm |
| Connection thread (total) | 16,66 mm (3/8 Zoll) |
| Product name | Art. no. | EAN | Type | Languages | Download |
|---|---|---|---|---|---|
| FIO1_MANUAL.pdf | FIO1 | 4035300827947 | Operation manual | CON_Download (PDF, 11 MB) |
2 Pieces
Spare parts
-

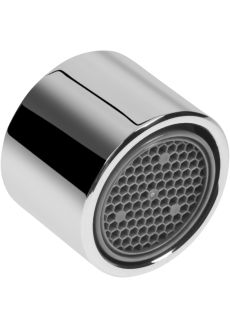

AeratorMengenregulierung, M22, For screwing on, chrome colored,Additional InformationArt. no.: TECWS100 EAN: 4035300943517
