CORNAT

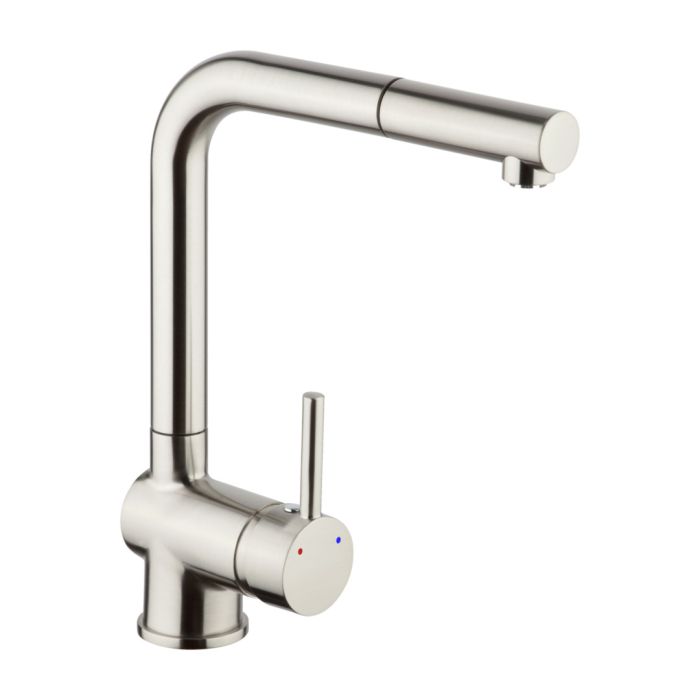

Sink mixer tap Livenne, Single-lever fitting-H, Low pressure (unpressurised), Schlauchauszug, stainless steel look

Art. Nr.:
LIVE535
EAN:
4035300994076
  • Intrinsically safe against backflow
  • Simple and tool-free installation thanks to shaft mounting
  • High spout with swivel function offers maximum flexibility
  • Practical pull-out spray allows convenient operation beyond the sink
  • Aerator ensures a soft, water-saving jet
The "Livenne" sink mixer tap from Cornat fits into any kitchen thanks to its classically elegant design. This mixer tap with three connection hoses is specially designed for use with open water heaters. It is particularly easy to install. Installation is particularly easy. Thanks to the shaft mounting, the mixer tap can be installed without tools, simply by tightening it. The connection hoses are already pre-assembled.
The smooth-running control lever allows you to adjust the flow rate and temperature precisely and conveniently. The practical pull-out spray allows for comfortable operation beyond the sink and provides more flexibility, e.g. when filling large pots. The aerator automatically enriches the outflowing water with air, ensuring a noticeably soft spray while reducing water consumption. It also prevents uncontrolled splashing of water.
  • This fitting with three connection hoses is specially designed for use with open water heaters.
  • Simple and tool-free installation thanks to shaft mounting
  • Fine adjustment of the desired water quantity and temperature using a lever
  • High spout with swivel function offers maximum flexibility
  • Practical pull-out spray allows convenient operation beyond the sink
  • Aerator ensures a soft, water-saving jet
  • Easily replaceable cartridge with low-wear ceramic sealing discs
  • Valve body made of robust material for a long service life
  • Easy to clean and corrosion-resistant thanks to high-quality coating
  • Intrinsically safe against backflow
Note: Attention!!! The tap may drip after use even when the lever is closed. This dripping is not a reason for complaint, but is necessary to keep the tap and boiler in working order!
Pre-assembled connection hoses – please screw them tight!
Connection thread (ET)
Connection thread (inch)3/8 inch
Connection thread (mm)16,66 mm
Connection thread (total)16,66 mm (3/8 Zoll)
Specification
EinsatzbereichSink unit
AusstattungWith pull-out shower head
AusführungSingle-lever fitting
AuslaufgewindeM22
VarianteSink mixer tap
SeriesLivenne
AnschlussLow pressure (unpressurised)
Montage- / BauartFloor mountingHigh design
MontageShank attachment
Rohranschlüsse1 hole
Connecting hose length50 cm
Shower hose length150 cm
Height305 mm
Spout height272.0 mm
Depth254 mm
Jib length209,0 mm
Flow rate7,5 l/min
Swivel range180°
SurfaceBrushed
Colourstainless steel look
MaterialZinc alloy / brass
Dimension305 x 254 mm
Article typeFitting
Connection thread (mm)16,66 mm
Connection thread (total)16,66 mm (3/8 Zoll)
Product nameArt. no.EANTypeLanguagesDownload
SA-0056_MANUAL.pdfLIV535, LIVE5354035300994052, 4035300994076Operation manualCON_Download
(PDF, 1016937)
1 Piece

Spare parts
