Shower fitting Naro, Single-lever fitting, High pressure (pressure-resistant), chrome colored
Art. Nr.:
NA3
EAN:
4035300827817
- High-pressure fitting for installation in a shower
- Easy installation on existing connections or installation points in front of the wall
- 1/2 inch shower outlet suitable for all standard shower hoses
- Fine adjustment of the desired water quantity and temperature using a lever
- Easily replaceable cartridge with low-wear ceramic sealing discs

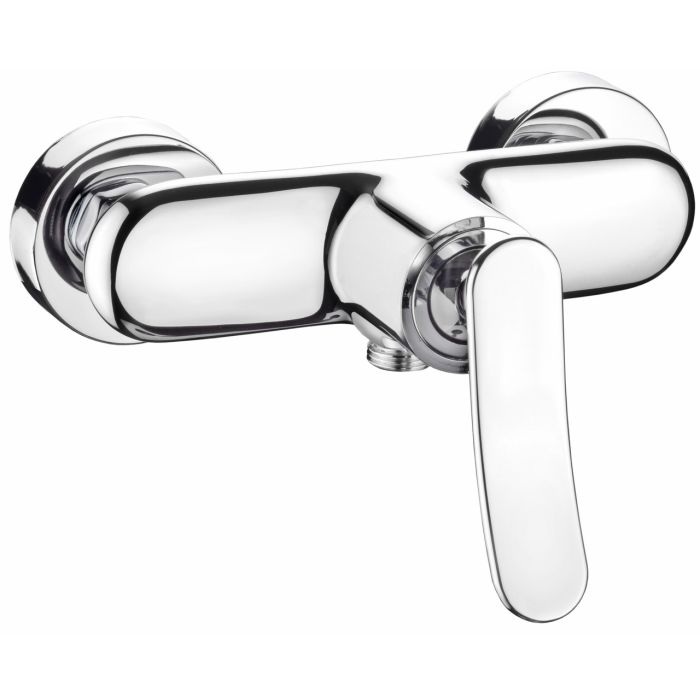

The "Naro" shower fitting from Cornat fits into any shower thanks to its classically elegant design. It is ideal for connection to a continuous-flow water heater or central hot water supply. The smooth-running control lever allows you to adjust the flow rate and temperature precisely and conveniently. Thanks to the temperature limiter, the maximum temperature can also be set in advance, thus reducing energy consumption.
- High-pressure fitting for installation in a shower
- Suitable for connection to a water heater or the central hot water supply - Easy installation on existing connections or installation points in front of the wall
- Fine adjustment of the desired water quantity and temperature using a lever
- 1/2 inch shower outlet suitable for all standard shower hoses
- Easily replaceable cartridge with low-wear ceramic sealing discs
- Valve body made of robust material for a long service life
- Easy to clean and corrosion-resistant thanks to high-quality chrome plating
Note: The hose shower set is not included in the scope of delivery!
| Hose connecting size (inch) | 1/2 inch |
| Hose connecting size (total) | 12,7 mm (1/2 Zoll) |
| Hose connecting size (mm) | 12,7 mm |
| Connection thread (inch) | 1/2 inch |
| Connection thread (mm) | 20,95 mm |
| Connection thread (total) | 20,95 mm (1/2 Zoll) |
| Hose connecting size (mm) | 12,7 mm |
| Einsatzbereich | Shower |
| Ausstattung | without |
| Flow rate (Shower outlet) | 11,8 l/min |
| Ausführung | Single-lever fitting |
| Variante | Shower fitting |
| Series | Naro |
| Anschluss | High pressure (pressure-resistant) |
| Montage- / Bauart | Wall mounting |
| Montage | Surface-mounted |
| Rohranschlüsse | 2 hole |
| Stichmaß | 150 mm (± 25 mm) |
| Height | 118 mm |
| Depth | 140 mm |
| Surface | chrome-plated |
| Colour | chrome colored |
| Material | Brass |
| Dimension | 118 x 140 mm |
| Article type | Fitting |
| Connection thread (mm) | 20,95 mm |
| Connection thread (total) | 20,95 mm (1/2 Zoll) |
| Product name | Art. no. | EAN | Type | Languages | Download |
|---|---|---|---|---|---|
| NA3_MANUAL.pdf | NA3 | 4035300827817 | Operation manual | DE, CZ, ES, FR, FI, GB, IT, NL, PL, PT, RO, SI, SK | CON_Download (PDF, 20 MB) |
