CORNAT

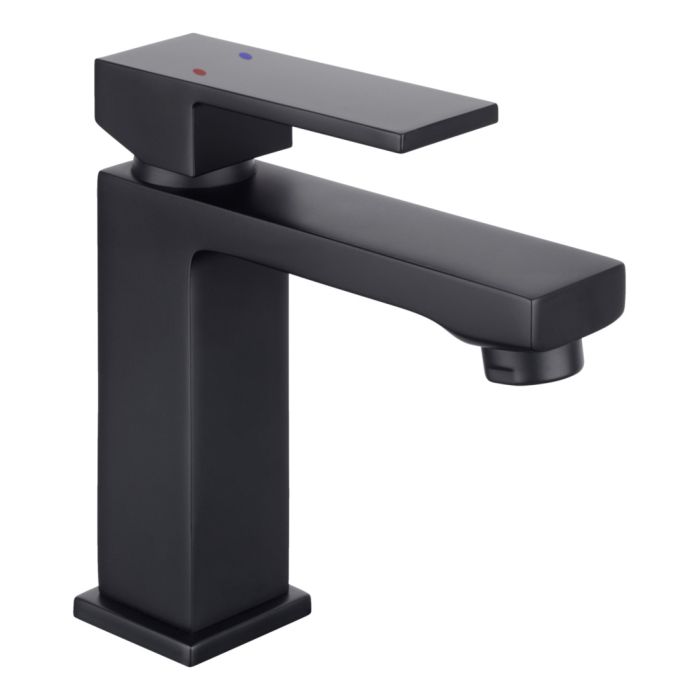

Washbasin tap-Set Edition Black, Single-lever fitting, High pressure (pressure-resistant), Print sequence, black, angular

Art. Nr.:
NERSE1
EAN:
4035300993734
  • Flexible connection hoses, length 450 mm
  • Simple and tool-free installation thanks to shaft fastening
  • Water-saving aerator, flow rate approx. 7.5 ~ 9 l/min, savings approx. 40% Cold-Start cartridge *cold water when lever is in middle position*

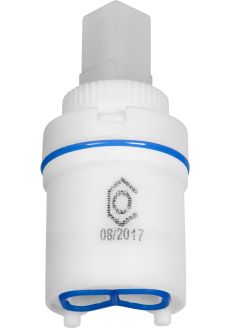

  • Cold-Start cartridge *cold water when lever is in middle position*
  • Convenient operation of the drain plug thanks to the push function
Inspired by the "Industrial Look", the Cornat Black Edition in matt black is a powerful eye-catcher in your kitchen! The "Noir" washbasin faucet is ideal for connection to a water heater or central hot water supply. Installation is particularly easy. Thanks to the shaft attachment, the faucet can be installed without tools by simply tightening it. With the smooth operating lever, you can adjust the flow rate and temperature precisely and conveniently. The aerator automatically enriches the flowing water with air and ensures a noticeably soft jet, while at the same time reducing water consumption. This reliably minimizes annoying flow noises and prevents uncontrolled splashing of the water.
  • High-pressure fitting for installation on a washbasin
    - Suitable for connection to a water heater or the central hot water supply
  • Simple and tool-free installation thanks to shaft fastening
  • Black Edition: Elegant and very appealing look in matt black
  • Water-saving aerator, flow rate approx. 7.5 ~ 9 l/min, savings approx. 40%
  • Convenient operation of the drain plug thanks to the push function
  • Cold-Start cartridge *cold water when lever is in middle position*
  • Fitting body made of robust material for a long service life
  • Easy to clean and corrosion-resistant thanks to high-quality chrome plating
  • Flexible connection hoses, length 450 mm
  • Flexible Anschlussschläuche, Länge 450 mm
Note: Water-saving aerator, flow rate approx. 7.5 ~ 9 l/min, savings approx. 40%,
cold start cartridge *cold water when lever is in middle position*
Connection thread (ET)
Connection thread (inch)3/8 inch
Connection thread (mm)16,66 mm
Connection thread (total)16,66 mm (3/8 Zoll)
Specification
EinsatzbereichWashbasin
AusstattungWith pressurised drain set
AnwendungCold water supply, Warm water supply
AusführungSingle-lever fitting
AuslaufgewindeM24
VarianteWashbasin tap
SeriesEdition Black
Formangular
AnschlussHigh pressure (pressure-resistant)
Montage- / BauartFloor mounting, Low design
MontageShank attachment
AblaufPrint sequence
Rohranschlüsse1 hole
Connecting hose length45 cm
Height149 mm
Spout height97.0 mm
Depth151 mm
Jib length114,0 mm
Flow rate7,5 l/min
Connection thread (inch)3/8 Zoll
Swivel range
OberflächeVarnished
Farbeblack
MaterialBrass
Dimension149 x 151 mm
Article typeFitting
Connection thread (mm)16,66 mm
Connection thread (total)16,66 mm (3/8 Zoll)
Product nameArt. no.EANTypeLanguagesDownload
NERSE1_MANUAL.pdfNERSE14035300993734Operation manualCON_Download
(PDF, 782 KB)
2-teilig

Spare parts
