CORNAT

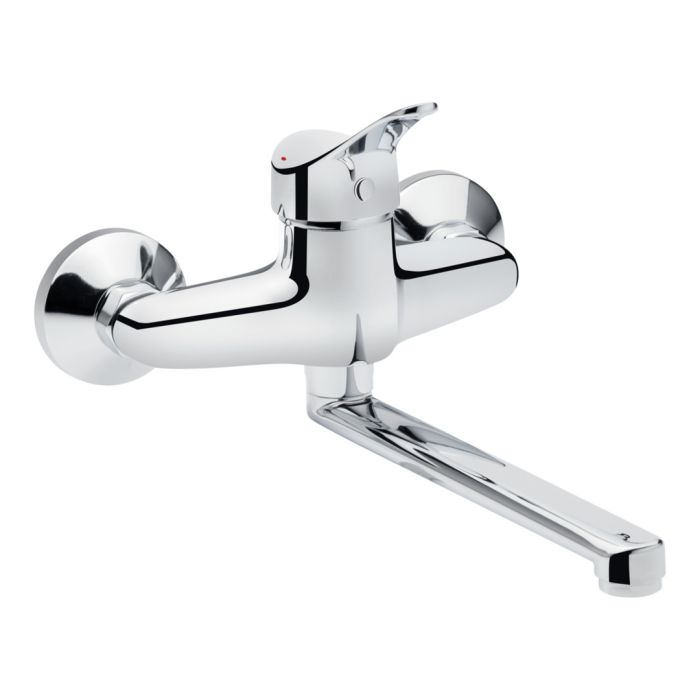

Sink mixer tap Punto, Single-lever fitting, High pressure (pressure-resistant), chrome colored

Art. Nr.:
P6
EAN:
4035300359301
  • High-pressure fitting for installation on a sink
  • Easy installation on existing connections or installation points in front of the wall
  • ECO function: Integrated flow limiter for economical water consumption
  • Individually adjustable temperature limit enables reduced energy consumption
  • Low-noise aerator ensures a soft, water-saving jet
The "Punto" sink mixer tap from Cornat fits into any kitchen thanks to its classically elegant design. It is ideal for connection to a continuous-flow water heater or central hot water supply. The smooth-running control lever allows you to adjust the flow rate and temperature precisely and conveniently. The swivelling spout provides greater flexibility and creates enormous space, e.g. when washing up. To ensure economical water consumption, the tap is equipped with an ECO cartridge, which prevents the lever from opening fully. Thanks to the temperature limiter, the maximum temperature can also be set in advance, thus reducing energy consumption. The aerator automatically enriches the outflowing water with air, ensuring a noticeably soft jet while reducing water consumption. This reliably minimises annoying flow noises and prevents uncontrolled splashing of water.
  • High-pressure fitting for installation on a sink
    - Suitable for connection to a flow heater or the central hot water supply
  • Easy installation on existing connections or installation points in front of the wall
  • Fine adjustment of the desired water quantity and temperature using a lever
  • Pivot spout offers high flexibility
  • ECO function:
    Integrated flow limiter for economical water consumption
  • Low-noise aerator ensures a soft, water-saving jet
  • Easily replaceable cartridge with low-wear ceramic sealing discs
  • Robust brass fitting body for a long service life
  • Easy to clean and corrosion-resistant thanks to high-quality chrome plating
Note: ECO click function
• Water flow can be reduced using the two-stage control lever
• Water savings of up to 50 per cent
Connection thread (ET)
Connection thread (inch)3/8 inch
Connection thread (mm)16,66 mm
Connection thread (total)16,66 mm (3/8 Zoll)
Specification
EinsatzbereichSink unit
Ausstattungwithout
AusführungSingle-lever fitting
AuslaufgewindeM24
VarianteSink mixer tap
SeriesPunto
AnschlussHigh pressure (pressure-resistant)
Montage- / BauartWall mounting
MontageS connection
Rohranschlüsse2 hole
Stichmaß150 mm (± 25 mm)
Depth278 mm
Jib length204,0 mm
Flow rate17,8 l/min
Swivel range180°
Surfacechrome-plated
Colourchrome colored
MaterialBrass
Dimensionx 278 mm
Article typeFitting
Connection thread (mm)16,66 mm
Connection thread (total)16,66 mm (3/8 Zoll)
Product nameArt. no.EANTypeLanguagesDownload
P6_MANUAL.pdfP64035300359301Operation manualDE, CZ, ES, FR, FI, GB, IT, NL, PL, PT, RO, SI, SKCON_Download
(PDF, 796 KB)
1 Piece

Spare parts
