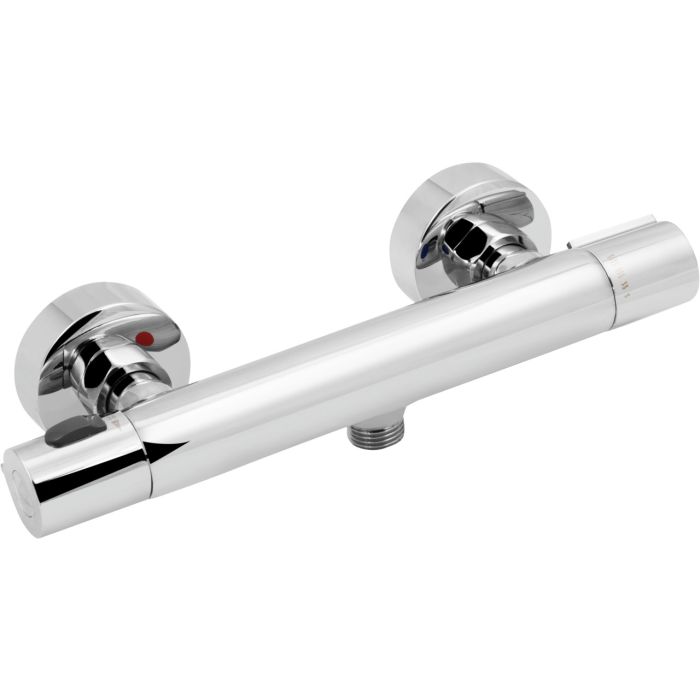

Shower fitting Parla, Thermostat, High pressure (pressure-resistant), chrome colored
Art. Nr.:
PAR3
EAN:
4035300827824
- High-pressure fitting for installation in a shower
- Suitable for connection to a continuous-flow water heater or the central hot water supply
- Temperature selection knob for convenient presetting of the water temperature
- Integrated safety lock at 38°C to protect against excessively hot water
- Cool-touch technology prevents the chrome surface from heating up
The "Parla" shower fitting from Cornat fits into any shower thanks to its classically elegant design. It is ideal for connection to a water heater or central hot water supply. The desired water temperature can be conveniently preset using the temperature selector handle. The thermostat maintains a constant temperature during showering, thereby reducing water wastage. The smooth-running control element on the other side of the tap allows you to conveniently regulate the flow rate. The integrated hot water lock at 38°C and cool-touch technology also provide reliable protection against scalding, making it ideal for households with children.
- High-pressure fitting for installation in a shower
- Suitable for connection to a water heater or the central hot water supply - Easy installation on existing connections or installation points in front of the wall
- Temperature selection handle for convenient presetting of the water temperature
- Constant temperature reduces water wastage
- Integrated safety lock at 38°C to protect against excessively hot water - 1/2 inch shower outlet suitable for all standard shower hoses
- Cool-touch technology prevents the chrome surface from heating up
- Easily replaceable thermocouple
- Fitting body made of robust material for a long service life
- Easy to clean and corrosion-resistant thanks to high-quality chrome plating
- Classically elegant design creates a visual highlight in your bathroom - Intrinsically safe against backflow
Note: The hose shower set is not included in the scope of delivery!
| Hose connecting size (inch) | 1/2 inch |
| Hose connecting size (total) | 12,7 mm (1/2 Zoll) |
| Hose connecting size (mm) | 12,7 mm |
| Connection thread (inch) | 1/2 inch |
| Connection thread (mm) | 20,95 mm |
| Connection thread (total) | 20,95 mm (1/2 Zoll) |
| Hose connecting size (mm) | 12,7 mm |
| Einsatzbereich | Shower |
| Ausstattung | With thermostat |
| Flow rate (Shower outlet) | 16,9 l/min |
| Ausführung | Thermostat fitting |
| Variante | Shower fitting |
| Series | Parla |
| Anschluss | High pressure (pressure-resistant) |
| Montage- / Bauart | Wall mounting |
| Montage | Surface-mounted |
| Rohranschlüsse | 2 hole |
| Stichmaß | 150 mm (± 10 mm) |
| Height | 32,5 mm |
| Depth | 7,8 mm |
| Surface | chrome-plated |
| Colour | chrome colored |
| Material | Brass |
| Dimension | 32,5 x 7,8 mm |
| Article type | Fitting |
| Connection thread (mm) | 20,95 mm |
| Connection thread (total) | 20,95 mm (1/2 Zoll) |
| Product name | Art. no. | EAN | Type | Languages | Download |
|---|---|---|---|---|---|
| SA-0006_MANUAL.pdf | MUR3, PAR3, ZAI3, ALA3, CALM3, DER3 | 4035300827787, 4035300827824, 4035300994236, 4035300993840, 4035300993925, 4035300993949 | Operation manual | DE, CZ, ES, FR, FI, GB, IT, NL, PL, PT, RO, SI, SK | CON_Download (PDF, 1483 KB) |
1 Piece
