CORNAT

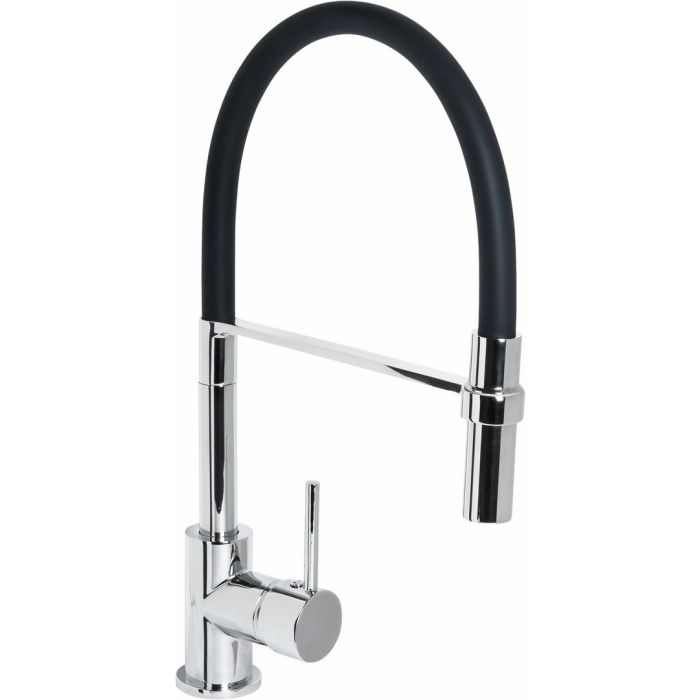

Sink mixer tap Saz, Single-lever fitting-H, High pressure (pressure-resistant), black

Art. Nr.:
SAZ612
EAN:
4035300963867
  • High-pressure fitting for installation on a sink
  • Simple and tool-free installation thanks to shaft mounting
  • Silicone hose with swivel function offers maximum flexibility
  • Individually adjustable temperature limit enables reduced energy consumption

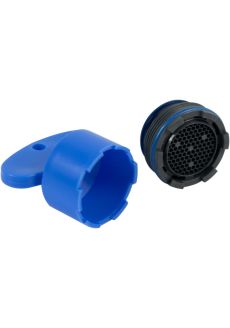

  • Low-noise aerator ensures a soft, water-saving jet
The Cornat sink mixer tap fits into any kitchen thanks to its classically elegant design. It is ideal for connection to a continuous-flow water heater or central hot water supply. Installation is particularly easy. Thanks to the shaft mounting, the tap can be installed without tools, simply by tightening it. The smooth-running control lever allows you to adjust the flow rate and temperature precisely and conveniently. The 360° swivel silicone spout creates maximum range of action and ensures greater flexibility, e.g. when using two sinks or filling large pots. Thanks to the integrated holder with plug-in mechanism, the spray head can be conveniently locked in place at any time. Thanks to the temperature limiter, the maximum temperature can also be set in advance, thus reducing energy consumption. The aerator automatically enriches the outflowing water with air, ensuring a noticeably soft jet while reducing water consumption. This reliably minimises annoying flow noises and prevents uncontrolled splashing of water.
  • High-pressure fitting for installation on a sink
    - Suitable for connection to a flow heater or the central hot water supply
  • Simple and tool-free installation thanks to shaft mounting
  • Fine adjustment of the desired water quantity and temperature using a lever
  • Individually adjustable temperature limit enables reduced energy consumption
  • Silicone hose with swivel function offers maximum flexibility
  • Low-noise aerator ensures a soft, water-saving jet
  • Easily replaceable cartridge with low-wear ceramic sealing discs
  • Valve body made of robust material for a long service life
  • Intrinsically safe against backflow
Connection thread (ET)
Connection thread (inch)3/8 inch
Connection thread (mm)16,66 mm
Connection thread (total)16,66 mm (3/8 Zoll)
Specification
EinsatzbereichSink unit
AusstattungWith flexible spout
AusführungSingle-lever fitting
AuslaufgewindeM24
VarianteSink mixer tap
SeriesSaz
AnschlussHigh pressure (pressure-resistant)
Montage- / BauartFloor mountingHigh design
MontageShank attachment
Rohranschlüsse1 hole
Connecting hose length50 cm
Height440 mm
Spout height164.0 mm
Depth265 mm
Jib length220,0 mm
Flow rate8 l/min
Swivel range360°
Surfacechrome-plated
Colourblack
MaterialZinc alloy / brass
Dimension440 x 265 mm
Article typeFitting
Connection thread (mm)16,66 mm
Connection thread (total)16,66 mm (3/8 Zoll)
Product nameArt. no.EANTypeLanguagesDownload
SAZ612_MANUAL.pdfSAZ6124035300963867Operation manualCON_Download
(PDF, 1193 KB)
1 Piece

Spare parts
