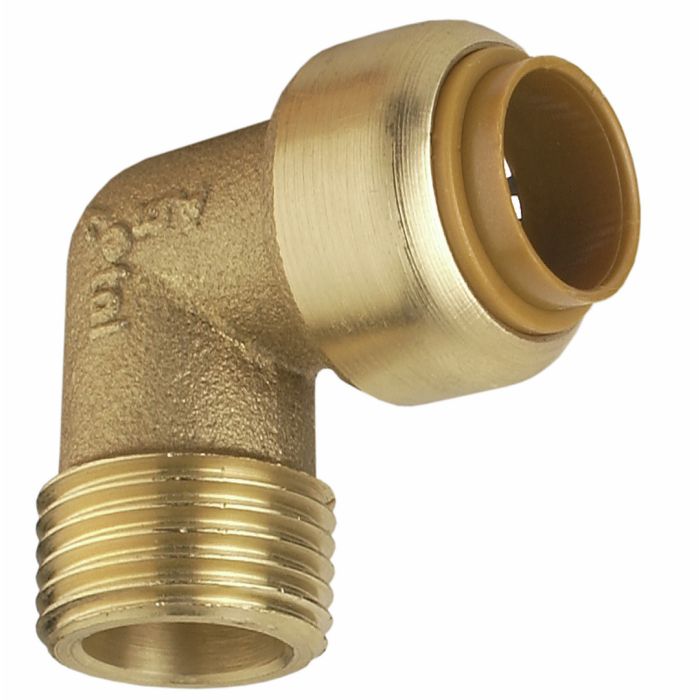

Plug-in fitting 90 ° Anglewithout wall platewith 1 sleeveBrass , Ø 15 mm x ET
Art. Nr.:
T630720
EAN:
4035300584925
- Nicht für Gas, Fernwärme und Solar geeignet
- Nicht geeignet für Edelstahlrohr
- Fitting mehrfach verwendbar
- Werkzeuglose Installation
- Unterputz verlegbar
Metal alloy (higher stability than brass) · 1 bushing · 1 external thread · Certified according to DVGW · Installation without tools · Multi-use fitting · Operating temperature -20 °C to max. 85 °C · Operating pressure 16 bar (test pressure 40 bar) · Also suitable for compressed air lines with oil-free compressed air max. 16 bar · Not suitable for gas, district heating and solar energy · Not suitable for stainless steel tubes · In-wall installation · ø 15 mm, 1/2" ET
| Connection thread (inch) | 1/2 inch |
| Connection thread (mm) | 20,95 mm |
| Connection thread (total) | 20,95 mm (1/2 Zoll) |
| Einsatzbereich | Pipelines |
| Ausstattung | with 1 sleeve, without wall plate |
| Ausführung | Transition piece |
| Variante | Angle |
| Montage | Plug-in connection |
| Diameter (Ø) | 15 mm |
| Operation pressure | 16 bar |
| Operating temperature | -20°C to +85°C |
| Gewindeart | ET |
| Angle | 90 ° |
| Material | Brass |
| Dimension | Ø 15 mm |
| Article type | Fitting |
| Connection thread (mm) | 20,95 mm |
| Connection thread (total) | 20,95 mm (1/2 Zoll) |
1 Stück
