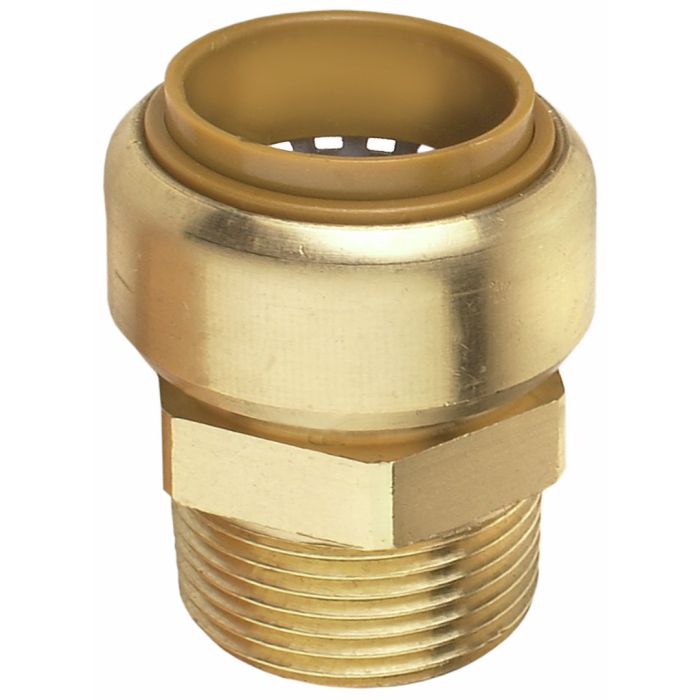

Plug-in fitting Brass , Ø 22 mm x 3/4 inch ET
Art. Nr.:
T631180
EAN:
4035300585038
- Nicht für Gas, Fernwärme und Solar geeignet
- Nicht geeignet für Edelstahlrohr
- Fitting mehrfach verwendbar
- Werkzeuglose Installation
- Unterputz verlegbar
Metal alloy (higher stability than brass) · 1 bushing · 1 external thread · Certified according to DVGW · Installation without tools · Multi-use fitting · Operating temperature -20 °C to max. 85 °C · Operating pressure 16 bar (test pressure 40 bar) · Also suitable for compressed air lines with oil-free compressed air max. 16 bar · Not suitable for gas, district heating and solar energy · Not suitable for stainless steel tubes · In-wall installation · 22 mm, 3/4" ET
| Connection thread (inch) | 3/4 inch |
| Connection thread (mm) | 26,44 mm |
| Connection thread (total) | 26,44 mm (3/4 Zoll) |
| Einsatzbereich | Pipelines |
| Ausstattung | with 1 sleeve |
| Ausführung | Transition nipple |
| Variante | - |
| Montage | Plug-in connection |
| Diameter (Ø) | 22 mm |
| Operation pressure | 16 bar |
| Operating temperature | -20°C to +85°C |
| Gewindeart | ET |
| Material | Brass |
| Dimension | Ø 22 mm |
| Article type | Fitting |
| Connection thread (mm) | 26,44 mm |
| Connection thread (total) | 26,44 mm (3/4 Zoll) |
1 Stück
