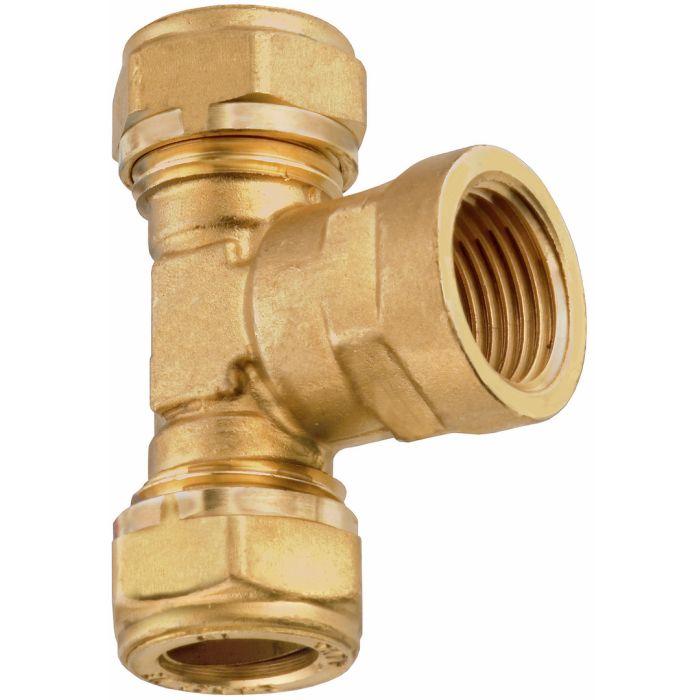

Clamp fitting T-piece, Brass bright, Ø 22 mm x 1/2 inch ET
Art. Nr.:
TEC583696
EAN:
4035300561919
- Nach DVGW zertifiziert
- Für Solaranlagen geeignet
- Unterputz verlegbar
- Auch für Druckluft geeignet
Brass · 1 Inner thread · 2 Sleeves · Certified according to DVGW · Operating temperature -20 °C to max. 200°C · Suitable for solar systems · Operating pressure: max. 30 bar · In-wall installation · Also suitable for compressed air · ø 22 mm, 1/2" IT, ø 22 mm
| Connection thread (inch) | 1/2 inch |
| Connection thread (mm) | 19,17 mm |
| Connection thread (total) | 19,17 mm (1/2 Zoll) |
| Einsatzbereich | Pipelines |
| Ausstattung | with 2 sleeves |
| Ausführung | Transition piece |
| Variante | T-piece |
| Montage | Clamping connection |
| Diameter (Ø) | 22 mm |
| Gewindeart | ET |
| Surface | bright |
| Material | Brass |
| Dimension | Ø 22 mm |
| Article type | Fitting |
| Connection thread (mm) | 19,17 mm |
| Connection thread (total) | 19,17 mm (1/2 Zoll) |
1 Piece
