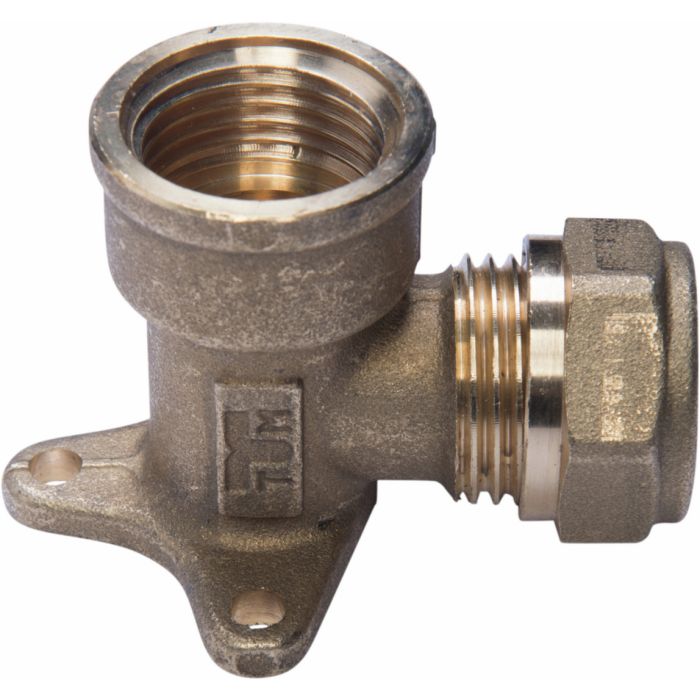

Clamp fitting 90 ° Anglewith wall platewith 1 sleeveBrass bright, Ø 15 mm x 1/2 inch ET
Art. Nr.:
TEC584416
EAN:
4035300090525
- Nach DVGW zertifiziert
- Für Solaranlagen geeignet
- Unterputz verlegbar
- Auch für Druckluft geeignet
Brass · 1 internal thread · 1 bushing · Certified according to DVGW · Operating temperature -20 °C to max. 200°C · Suitable for solar systems · Operating pressure: max. 30 bar · In-wall installation · Also suitable for compressed air · ø 15 mm, 1/2" IT
| Connection thread (inch) | 1/2 inch |
| Connection thread (mm) | 19,17 mm |
| Connection thread (total) | 19,17 mm (1/2 Zoll) |
| Einsatzbereich | Pipelines |
| Ausstattung | with 1 sleeve, with wall plate |
| Ausführung | Transition piece |
| Variante | Angle |
| Montage | Clamping connection |
| Diameter (Ø) | 15 mm |
| Gewindeart | ET |
| Angle | 90 ° |
| Surface | bright |
| Material | Brass |
| Dimension | Ø 15 mm |
| Article type | Fitting |
| Connection thread (mm) | 19,17 mm |
| Connection thread (total) | 19,17 mm (1/2 Zoll) |
1 Piece
