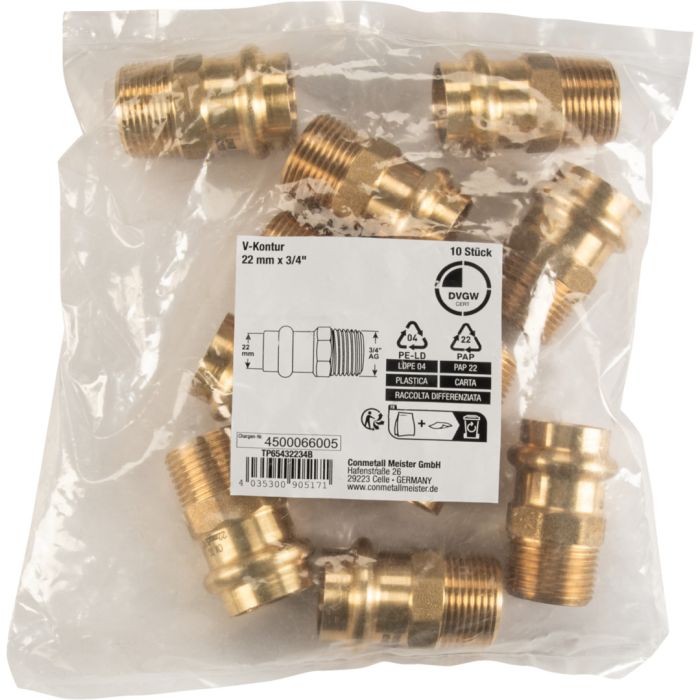

Press fitting Gunmetal bright, Ø 22 mm x 3/4 inch ET,
Art. Nr.:
TP65432234B
EAN:
4035300905171
Red brass · With 1 external thread · With 1 bushing · V-shaped · Certified according to DVGW · Non-pressed connections immediately identifiable at pressures of 0.1 to 6.0 bar, "non-pressed leaky" · Operating temperature -30°C to max. 110°C · Suitable for solar systems with a continuous temperature of max. 110 °C · Compressed air lines for oil-free compressed air PN 10 · In-wall installation · Not suitable for gas · ø 22 mm, 3/4" ET
| Einsatzbereich | Pipelines |
| Ausstattung | with 1 sleeve |
| Ausführung | Transition nipple |
| Variante | - |
| Press contour | V |
| Montage | Press connection |
| Durchmesser (Ø) | 22 mm |
| Betriebsdruck | 16 bar |
| Umgebungs- / Betriebstemperatur | -30°C bis +110°C |
| Gewindeart | ET |
| Anschlussgewinde (Zoll) | 3/4 inch |
| Oberfläche | bright |
| Material | Gunmetal |
| Abmessung | Ø 22 mm |
| Artikeltyp | Fitting |
| Anschlussgewinde (mm) | 26,44 mm |
| Anschlussgewinde (Gesamt) | 26,44 mm (3/4 Zoll) |
| Product name | Art. no. | EAN | Type | Languages | Download |
|---|---|---|---|---|---|
| SA-0035_MANUAL.pdf | TP650115B, TP650215B, TP650118B, T650322B, TP650218B, T650422B, TP650122B, TP650222B, TP650315B, TP650415B, TP650318B, TP650418B, TP650322B, TP650422B, T650328B, T650428B, T550111, T550112, T550113, T550114, T550212, T550213, T654015B, T65401815B, T65441512B, T65441534B, T6544221B, T65411815B, T65431512B, T65431834B, T6543221B, T65801512B, WICUR15, T6580221B, T65802234B, T650115B, T650215B, T65921512B, T653015B, T65301815B, T65311512B, T65721512B, T65761512B, T654215B, T654018B, T65402215B, T65441812B, T65441834B, T6544281B, T65412215B, T65431812B, T65432234B, T6543281B, T65801812B, T650118B, T650218B, T653018B, T65302215B, T65311812B, T65721812B, T65771512B, T654218B, T654022B, T65402218B, T65442212B, T65442234B, T65412218B, T65432212B, T65432834B, T650122B, T650222B, T65302218B, T653022B, T65312212B, T65901512B, T654222B, T654028B, T65402822B, T65412822B, T650128B, T650228B, T65302822B, T653028B, T654228B, T65442834B, T650315B, T650415B, TP65431512B, TP65432234B, TP65721512B, TP654015B, TP65412215B, T650318B, TP65431812B, T650418B, TP653015B, TP654018B, TP653018B, TP654022B, TP653022B | 4035300904969, 4035300904990, 4035300904976, 4035300904563, 4035300905003, 4035300904600, 4035300904983, 4035300905010, 4035300905027, 4035300905058, 4035300905034, 4035300905065, 4035300905041, 4035300905072, 4035300904570, 4035300904617, 4035300285877, 4035300285884, 4035300285891, 4035300285907, 4035300286010, 4035300286027, 4035300904723, 4035300959013, 4035300904884, 4035300959136, 4035300958979, 4035300904761, 4035300904839, 4035300959112, 4035300958955, 4035300959167, 4004722360622, 4035300958993, 4035300959198, 4035300904464, 4035300904501, 4035300959211, 4035300904624, 4035300904631, 4035300904693, 4035300904921, 4035300904945, 4035300904792, 4035300904730, 4035300959020, 4035300904891, 4035300959143, 4035300958986, 4035300904778, 4035300904846, 4035300904853, 4035300904860, 4035300959174, 4035300904471, 4035300904518, 4035300904648, 4035300904655, 4035300904709, 4035300904938, 4035300904952, 4035300904808, 4035300904747, 4035300959037, 4035300959150, 4035300904907, 4035300958948, 4035300959129, 4035300904877, 4035300904488, 4035300904525, 4035300959006, 4035300904662, 4035300904716, 4035300959204, 4035300904815, 4035300904754, 4035300959051, 4035300904785, 4035300904495, 4035300904532, 4035300904679, 4035300904686, 4035300904822, 4035300904914, 4035300904549, 4035300904587, 4035300905157, 4035300905171, 4035300905188, 4035300905119, 4035300905140, 4035300904556, 4035300905164, 4035300904594, 4035300905089, 4035300905126, 4035300905096, 4035300905133, 4035300905102 | Operation manual | DE | CON_Download (PDF, 1698 KB) |
10 Stück
