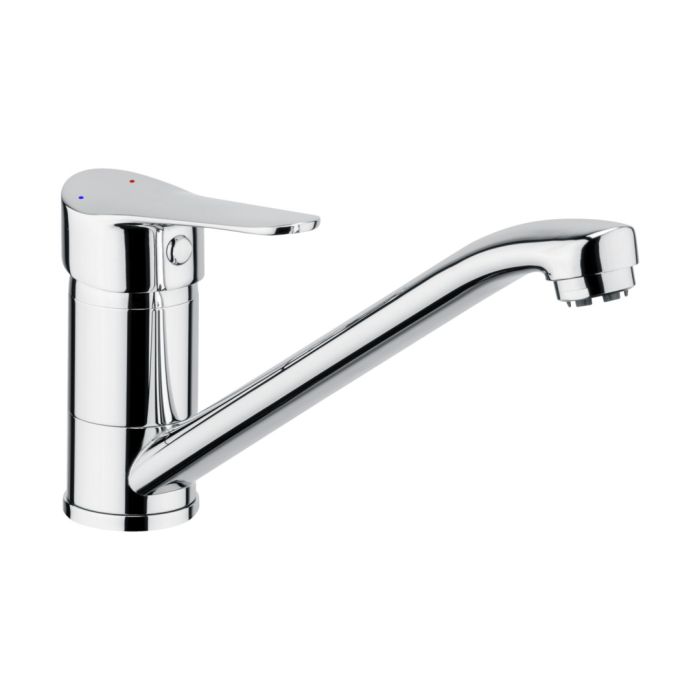

Sink mixer tap Veduta, Single-lever fitting-N, Low pressure (unpressurised), chrome colored
Art. Nr.:
VED52
EAN:
4035300994885
- Low-pressure fitting for installation on a sink
- Simple and tool-free installation thanks to shaft mounting
- Fine adjustment of the desired water quantity and temperature using a lever
- Spout with 360° swivel function offers maximum flexibility
- Jet regulator (M24 x 1) ensures a soft, water-saving jet
The "Veduta" sink tap from Cornat fits into any kitchen thanks to its classically elegant design. It is ideal for connection to a water storage tank, such as a boiler. Installation is particularly easy. Thanks to the shaft mounting, the tap can be installed without tools, simply by tightening it. The smooth-running lever allows you to adjust the flow rate and temperature precisely and conveniently. The 360° swivel range creates maximum range of action and ensures greater flexibility, e.g. when using two sinks or filling large pots. The aerator automatically enriches the outflowing water with air, ensuring a noticeably soft jet while reducing water consumption. It also prevents uncontrolled splashing of water.
- This fitting with three connection hoses is specially designed for use with open water heaters.
- Simple and tool-free installation thanks to shaft mounting
- Low-noise aerator ensures a soft, water-saving jet
- Spout with 360° swivel function offers maximum flexibility
- Jet regulator (M24 x 1) ensures a soft, water-saving jet
- Easily replaceable cartridge with low-wear ceramic sealing discs
- Spout with swivel function offers high flexibility
- Easy to maintain and corrosion resistant
Note: Attention!!! The tap may drip after use even when the lever is closed. Dripping from the tap is not a reason for complaint, but is necessary to keep the tap and boiler in working order!
| Connection thread (inch) | 3/8 inch |
| Connection thread (mm) | 16,66 mm |
| Connection thread (total) | 16,66 mm (3/8 Zoll) |
| Einsatzbereich | Sink unit |
| Ausstattung | without |
| Ausführung | Single-lever fitting |
| Auslaufgewinde | M24 |
| Variante | Sink mixer tap |
| Series | Veduta |
| Anschluss | Low pressure (unpressurised) |
| Montage- / Bauart | Floor mountingLow design |
| Montage | Shank attachment |
| Rohranschlüsse | 1 hole |
| Connecting hose length | 35 - 50 cm |
| Height | 144 mm |
| Spout height | 121.0 mm |
| Depth | 249 mm |
| Jib length | 217,0 mm |
| Flow rate | 13,5 l/min |
| Swivel range | 360° |
| Surface | chrome-plated |
| Colour | chrome colored |
| Material | Brass |
| Dimension | 144 x 249 mm |
| Article type | Fitting |
| Connection thread (mm) | 16,66 mm |
| Connection thread (total) | 16,66 mm (3/8 Zoll) |
| Product name | Art. no. | EAN | Type | Languages | Download |
|---|---|---|---|---|---|
| VED52_MANUAL.pdf | VED52 | 4035300994885 | Operation manual | DE, CZ, ES, FR, FI, GB, IT, NL, PL, PT, RO, SI, SK | CON_Download (PDF, 637 KB) |
1 Stück
