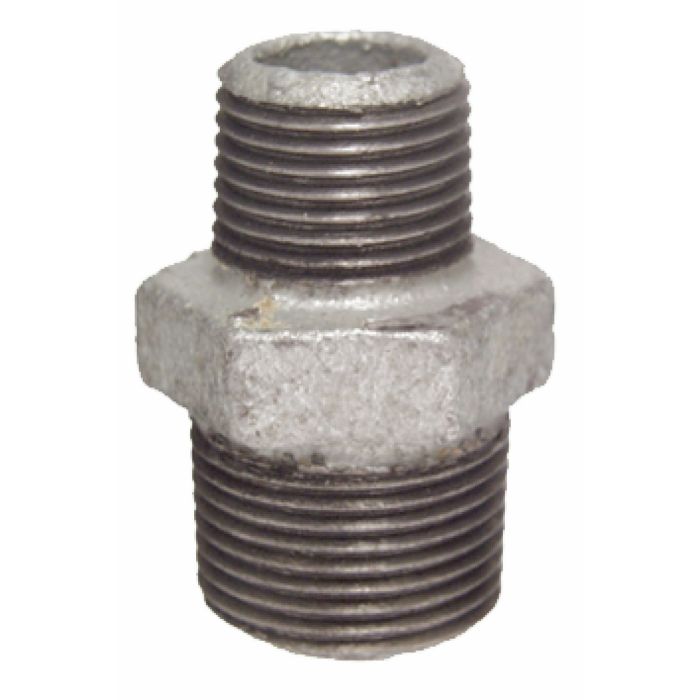

Threaded fitting Malleable cast iron galvanized, 3/4 x 1/2 inch ET
Art. Nr.:
VFB2453412
EAN:
4004722429015
- Nach DIN EN 10242 Design-Symbol A gefertigt
- Gewinde nach DIN EN 10226-1 (ISO 7-1)
Malleable cast iron · Galvanised · Reduced · With 2 external threads · Manufactured in accordance with DIN 10242 design symbol A · Conical thread according to DIN EN 10226-1 (ISO 7-1) metal/metal sealing · 3/4" ET, 1/2" ET
| Connection thread (inch) | 3/4 x 1/2 inch |
| Connection thread (mm) | 26,44 x 20,95 mm |
| Connection thread (total) | 26,44 mm (3/4 Zoll) x 20,95 mm (1/2 Zoll) |
| Einsatzbereich | Pipelines |
| Ausstattung | without |
| Ausführung | Reducing nipple |
| Variante | - |
| Montage | Threaded connection |
| Gewindeart | ET |
| Oberfläche | galvanized |
| Material | Cast iron |
| Materialspezifikation | Malleable cast iron |
| Article type | Fitting |
| Product name | Art. no. | EAN | Type | Languages | Download |
|---|---|---|---|---|---|
| VFB2453412_LE_01.pdf | VFB2453412 | 4004722429015 | Declaration of performance | CON_Download (PDF, 515 KB) |
