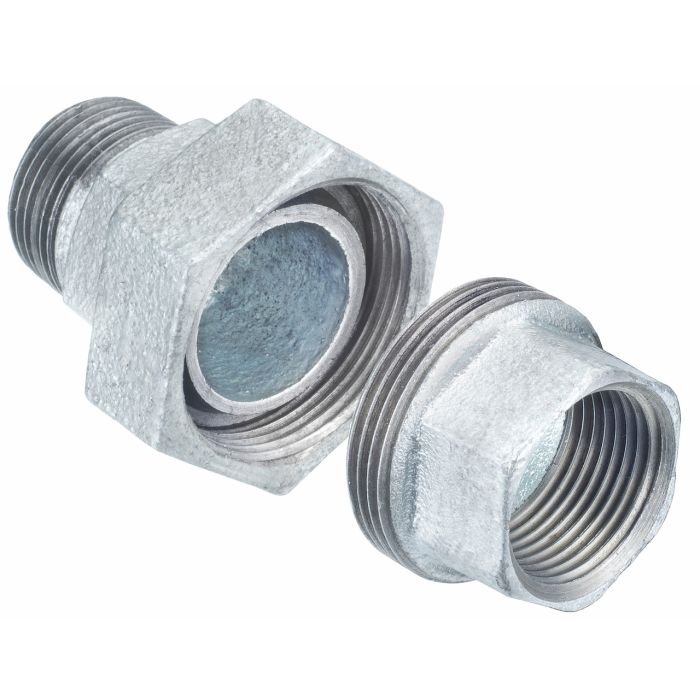

Threaded fitting Verschraubung, conically sealing, Malleable cast iron galvanized, 3/4 inch IT/ET
Art. Nr.:
VFB34134
EAN:
4004722429268
- Nach DIN EN 10242 Design-Symbol A gefertigt
- Gewinde nach DIN EN 10226-1 (ISO 7-1)
Malleable cast iron · Galvanised · With 1 internal thread · With 1 external thread · Conical sealing screw connection (not suitable for gas) · Manufactured in accordance with DIN EN 10242 design symbol A · Conical thread according to DIN EN 10226-1 (ISO 7-1) metal/metal sealing · 3/4" IT, 1" ET
| Connection thread (inch) | 3/4 inch |
| Connection thread (mm) | 24,66 mm |
| Connection thread (total) | 24,66 mm (3/4 Zoll) |
| Connection thread (inch) | 3/4 inch |
| Connection thread (mm) | 26,44 mm |
| Connection thread (total) | 26,44 mm (3/4 Zoll) |
| Einsatzbereich | Pipelines |
| Ausstattung | without |
| Ausführung | Transition connection |
| Variante | - |
| Dichtung | conically sealing |
| Montage | Threaded connection |
| Gewindeart | IT/ET |
| Oberfläche | galvanized |
| Material | Cast iron |
| Materialspezifikation | Malleable cast iron |
| Article type | Fitting |
| Product name | Art. no. | EAN | Type | Languages | Download |
|---|---|---|---|---|---|
| VFB34134_LE_01.pdf | VFB34134 | 4004722429268 | Declaration of performance | CON_Download (PDF, 515 KB) |
1 Stück
