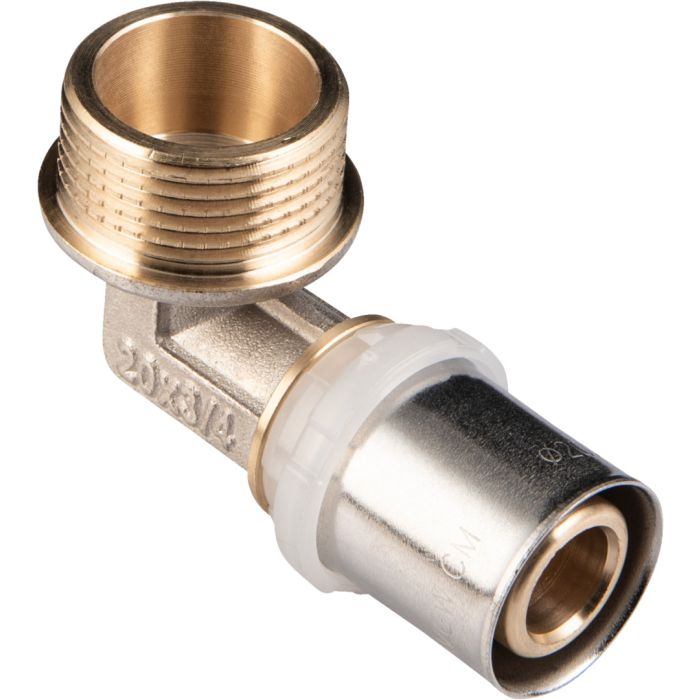

Press fitting VRS, 90 ° Angle, mit WS, Brass / stainless steel, Ø 20 mm x 3/4 inch ET, 1 Piece
Art. Nr.:
VRP500223N
EAN:
4035300053780
- DWGW certified
- Not suitable for gas and solar
• Brass / stainless steel • With 1 external thread • For drinking water and heating installation • DVGW certified • Operating temperature up to 95 °C • Operating pressure: max. 10 bar • In-wall installation • Not suitable for gas and solar energy • ø 20 mm, 3/4" AG
| Connection thread (inch) | 3/4 inch |
| Connection thread (mm) | 26,44 mm |
| Connection thread (total) | 26,44 mm (3/4 Zoll) |
| Einsatzbereich | Pipelines |
| Ausführung | Transition piece |
| Variante | Angle |
| System | Composite pipe system |
| Presskontur | THU |
| Montage | Press connection |
| Diameter (Ø) | 20 mm |
| Operation pressure | 10 bar |
| Operating temperature | 95°C |
| Gewindeart | ET |
| Angle | 90 ° |
| Surface | bright |
| Material | Brass / stainless steel |
| Dimension | Ø 20 mm |
| Article type | Fitting |
| Connection thread (mm) | 26,44 mm |
| Connection thread (total) | 26,44 mm (3/4 Zoll) |
1 Piece
