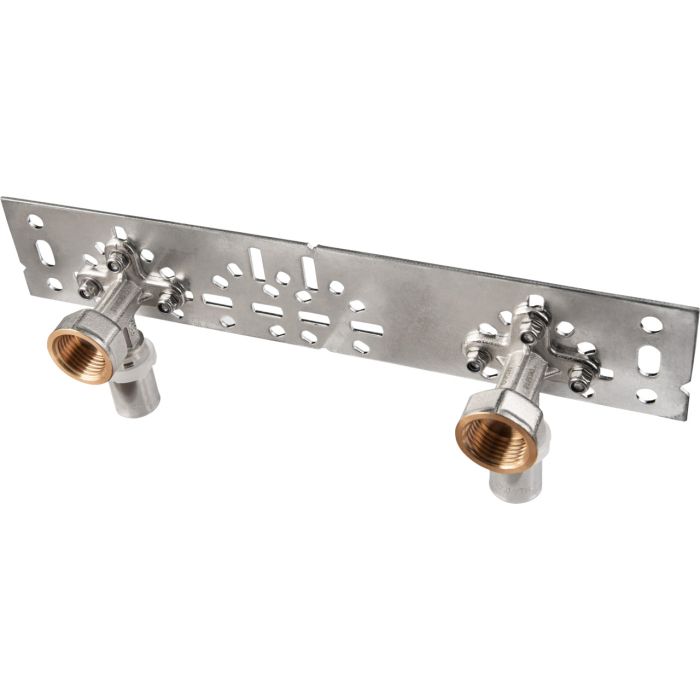

Press fitting VRS, 90 ° Angle, mit WS, Brass / stainless steel, Ø 16 mm x 1/2 inch ET, 1 Piece
Art. Nr.:
VRP500916N
EAN:
4035300054138
- DWGW certified
- Not suitable for gas and solar
• Brass / stainless steel / zinc-plated • For wall taps or angular valves • For drinking water and heating installation • DVGW certified • Operating temperature up to 95 °C • Operating pressure: max. 10 bar • In-wall installation • Not suitable for gas and solar energy • ø 16 mm, 1/2" IT
| Connection thread (inch) | 1/2 inch |
| Connection thread (mm) | 19,17 mm |
| Connection thread (total) | 19,17 mm (1/2 Zoll) |
| Einsatzbereich | Pipelines |
| Ausführung | Transition piece |
| Variante | Angle |
| System | Composite pipe system |
| Presskontur | THU |
| Montage | Press connection |
| Diameter (Ø) | 16 mm |
| Operation pressure | 10 bar |
| Operating temperature | 95°C |
| Gewindeart | ET |
| Angle | 90 ° |
| Surface | bright |
| Material | Brass / stainless steel |
| Dimension | Ø 16 mm |
| Article type | Fitting |
| Connection thread (mm) | 19,17 mm |
| Connection thread (total) | 19,17 mm (1/2 Zoll) |
1 Piece
