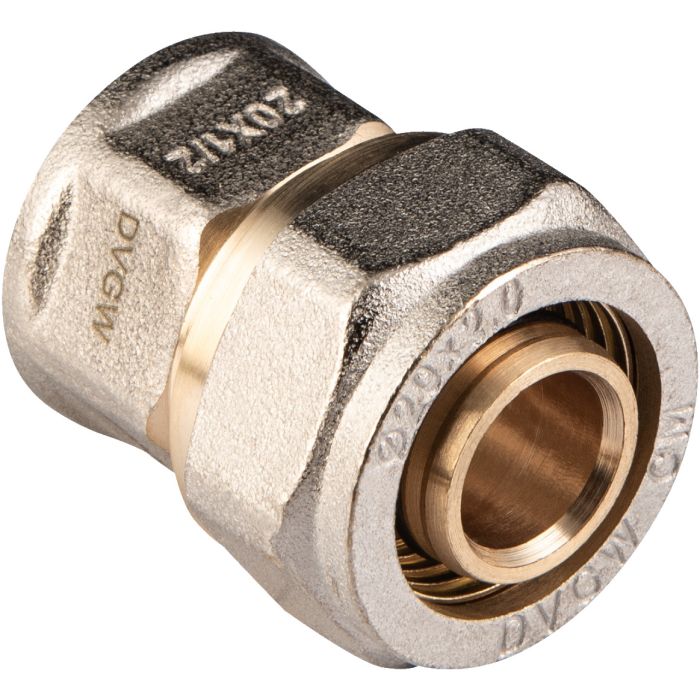

Screw fitting VRS, Muffe, Brass nickel plated, Ø 20 mm x 1 inch ET
Art. Nr.:
VRS670220N
EAN:
4035300053162
- For drinking water and heating installation
- In-wall installation
- Reusable
Nickel-plated brass • With 1 internal thread • For drinking water and heating installation • Reusable • DVGW certified • Operating temperature up to 95 °C • Operating pressure: max. 10 bar • In-wall installation • Not suitable for gas and solar energy • ø 20 mm, 1/2" IT
| Connection thread (inch) | 1 inch |
| Connection thread (mm) | 30,93 mm |
| Connection thread (total) | 30,93 mm (1 Zoll) |
| Einsatzbereich | Pipelines |
| Ausstattung | without |
| Ausführung | Transition sleeve |
| Variante | - |
| System | Composite pipe system |
| Montage | Screw connection |
| Diameter (Ø) | 20 mm |
| Operation pressure | 10 bar |
| Operating temperature | 95°C |
| Gewindeart | ET |
| Surface | nickel plated |
| Material | Brass |
| Dimension | Ø 20 mm |
| Article type | Fitting |
| Connection thread (mm) | 30,93 mm |
| Connection thread (total) | 30,93 mm (1 Zoll) |
1 Piece
