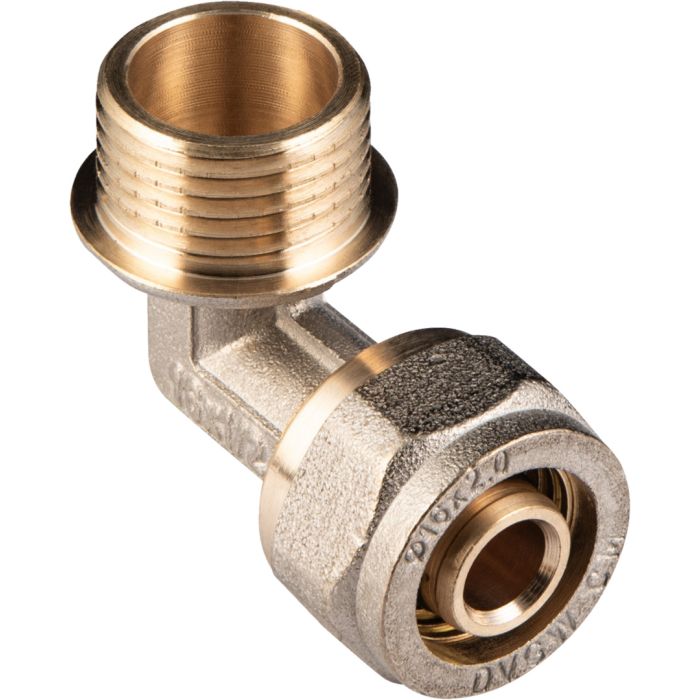

Screw fitting VRS, 90 ° AngleBrass nickel plated, Ø 16 mm x ET
Art. Nr.:
VRS670416N
EAN:
4035300053230
- For drinking water and heating installation
- In-wall installation
- Reusable
Nickel-plated brass • With 1 external thread • For drinking water and heating installation • Reusable • DVGW certified • Operating temperature up to 95 °C • Operating pressure: max. 10 bar • In-wall installation • Not suitable for gas and solar energy • ø 16 mm, 1/2" ET
| Connection thread (inch) | 1/2 inch |
| Connection thread (mm) | 20,95 mm |
| Connection thread (total) | 20,95 mm (1/2 Zoll) |
| Einsatzbereich | Pipelines |
| Ausführung | Transition piece |
| Variante | Angle |
| System | Composite pipe system |
| Montage | Screw connection |
| Diameter (Ø) | 16 mm |
| Operation pressure | 10 bar |
| Operating temperature | 95°C |
| Gewindeart | ET |
| Angle | 90 ° |
| Surface | nickel plated |
| Material | Brass |
| Dimension | Ø 16 mm |
| Article type | Fitting |
| Connection thread (mm) | 20,95 mm |
| Connection thread (total) | 20,95 mm (1/2 Zoll) |
1 Piece
