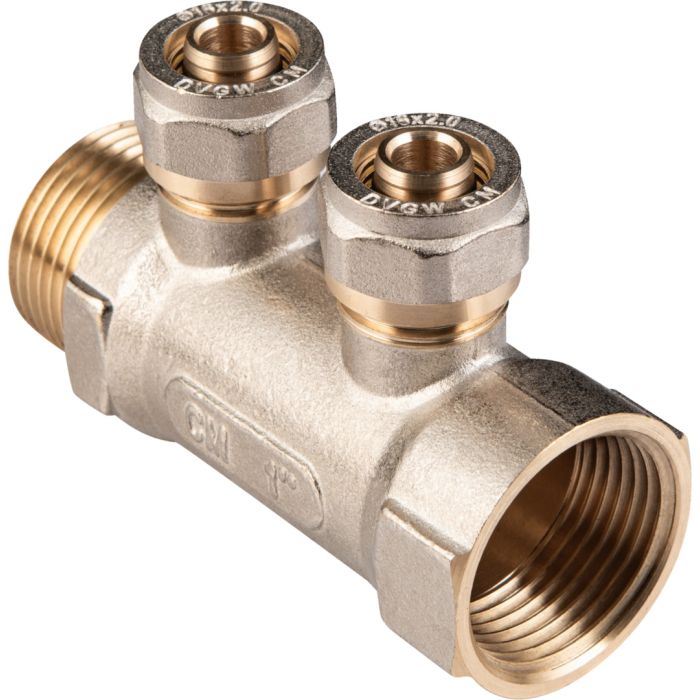

Screw fitting VRS, 2-way-distributor, Brass nickel plated, Ø 16 mm x 1 inch IT/ET
Art. Nr.:
VRS670940N
EAN:
4035300053476
- For drinking water and heating installation
- In-wall installation
- Not suitable for gas and solar energy
- Reusable
Nickel-plated brass • With 1 external and 1 interior thread, as well as 2 outlets for distribution of the pipes • For drinking water and heating installation • Reusable • DVGW certified • Max. operating temperature: 95 °C. • Maximum operating pressure: 10 bar • In-wall installation • Not suitable for gas and solar · ø 16 mm, 1" IT/ET
| Connection thread (inch) | 1 inch |
| Connection thread (mm) | 30,93 mm |
| Connection thread (total) | 30,93 mm (1 Zoll) |
| Connection thread (inch) | 1 inch |
| Connection thread (mm) | 33,25 mm |
| Connection thread (total) | 33,25 mm (1 Zoll) |
| Einsatzbereich | Pipelines |
| Ausstattung | with 2 outlets |
| Ausführung | Distributor |
| Variante | 2-way-distributor |
| System | Composite pipe system |
| Montage | Screw connection |
| Diameter (Ø) | 16 mm |
| Operation pressure | 10 bar |
| Operating temperature | 95°C |
| Gewindeart | IT/ET |
| Surface | nickel plated |
| Material | Brass |
| Dimension | Ø 16 mm |
| Article type | Fitting |
| Connection thread (mm) | 30,93 mm |
| Connection thread (total) | 30,93 mm (1 Zoll) |
| Connection thread (mm) | 33,25 mm |
| Connection thread (total) | 33,25 mm (1 Zoll) |
1 Piece
