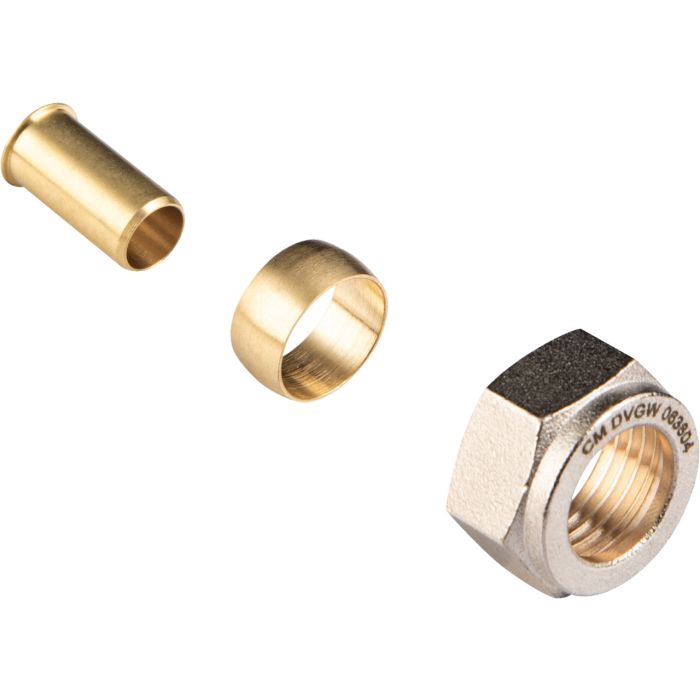

Clamp fitting VRS, Adapter, Brass nickel plated, Ø 15 mm x 1/2 inch ET
Art. Nr.:
VRS671205N
EAN:
4035300053643
- For drinking water and heating installation
- In-wall installation
- Not suitable for gas and solar energ
Brass • For coupling with external thread and • Euro taper • For copper pipes • With support sleeve • For drinking water and heating installation • DVGW certified • Operating temperature up to 95 °C • Operating pressure: max. 10 bar • In-wall installation • Not suitable for gas and solar energy • ø 15 mm, 1/2" IT
| Connection thread (inch) | 1/2 inch |
| Connection thread (mm) | 19,17 mm |
| Connection thread (total) | 19,17 mm (1/2 Zoll) |
| Einsatzbereich | Pipelines |
| Ausstattung | without |
| Ausführung | Adapter |
| System | Composite pipe system |
| Montage | Clamping connection |
| Diameter (Ø) | 15 mm |
| Operation pressure | 10 bar |
| Operating temperature | 95°C |
| Gewindeart | ET |
| Surface | nickel plated |
| Material | Brass |
| Dimension | Ø 15 mm |
| Article type | Fitting |
| Connection thread (mm) | 19,17 mm |
| Connection thread (total) | 19,17 mm (1/2 Zoll) |
1 Piece
