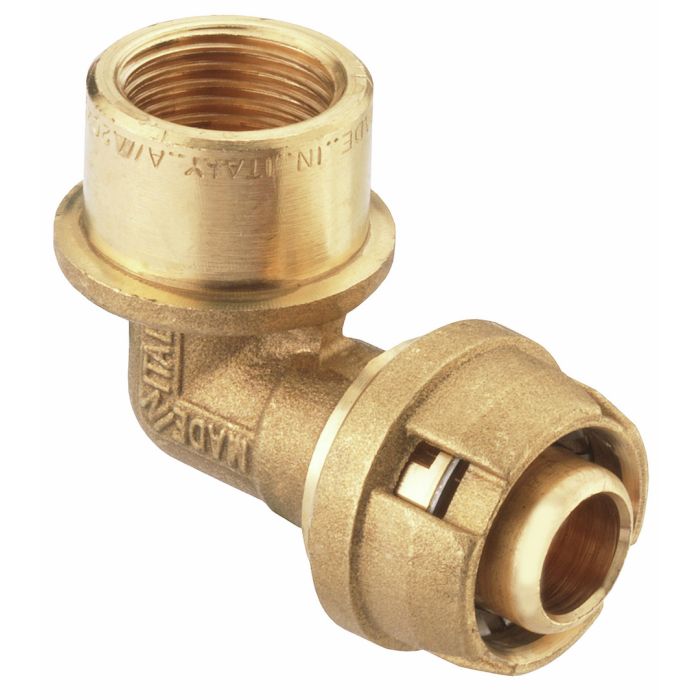

Plug-in fitting VRS, 90 ° Anglewithout wall plateBrass , Ø 20 mm x 1/2 inch ET
Art. Nr.:
VRST660630
EAN:
4035300820009
- Nicht für Gas und Solar geeignet
- Für Trinkwasser und Heizungsinstallation
- Wiederverwendbar
- Werkzeuglose Installation
- Unterputz verlegbar
Brass · With 1 internal thread · For drinking water and heating installation · Reusable · Installation without tools · DVGW certified · Operating temperature up to 95 °C · Operating pressure: max. 10 bar · In-wall installation · Not suitable for gas and solar energy · ø 20 mm, 1/2" IG
| Connection thread (inch) | 1/2 inch |
| Connection thread (mm) | 19,17 mm |
| Connection thread (total) | 19,17 mm (1/2 Zoll) |
| Einsatzbereich | Pipelines |
| Ausstattung | without wall plate |
| Ausführung | Transition piece |
| Variante | Angle |
| System | Composite pipe system |
| Montage | Plug-in connection |
| Diameter (Ø) | 20 mm |
| Operation pressure | 10 bar |
| Operating temperature | 95°C |
| Gewindeart | ET |
| Angle | 90 ° |
| Material | Brass |
| Dimension | Ø 20 mm |
| Article type | Fitting |
| Connection thread (mm) | 19,17 mm |
| Connection thread (total) | 19,17 mm (1/2 Zoll) |
1 Stück
