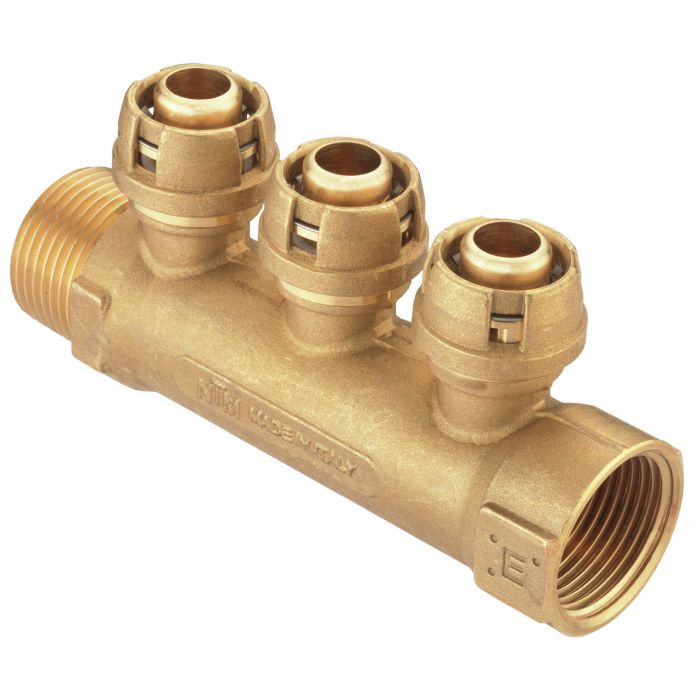

Plug-in fitting VRS, 3-way-distributor, Brass , Ø 20 mm x 1 inch IT/ET
Art. Nr.:
VRST662120
EAN:
4035300819768
- Nicht für Gas und Solar geeignet
- Für Trinkwasser und Heizungsinstallation
- Wiederverwendbar
- Werkzeuglose Installation
- Unterputz verlegbar
Brass · With 1 external and 1 interior thread, · As well as 2 outlets for distribution of the pipes · For drinking water and heating installation · Reusable · Installation without tools · DVGW certified · Operating temperature up to 95 °C · Operating pressure: max. 10 bar · In-wall installation · Not suitable for gas and solar energy · ø 20 mm, 1" IG/AG
| Connection thread (inch) | 1 inch |
| Connection thread (mm) | 30,93 mm |
| Connection thread (total) | 30,93 mm (1 Zoll) |
| Connection thread (inch) | 1 inch |
| Connection thread (mm) | 33,25 mm |
| Connection thread (total) | 33,25 mm (1 Zoll) |
| Einsatzbereich | Pipelines |
| Ausstattung | with 3 outlets |
| Ausführung | Distributor |
| Variante | 3-way-distributor |
| System | Composite pipe system |
| Montage | Plug-in connection |
| Diameter (Ø) | 20 mm |
| Operation pressure | 10 bar |
| Operating temperature | 95°C |
| Gewindeart | IT/ET |
| Material | Brass |
| Dimension | Ø 20 mm |
| Article type | Fitting |
| Connection thread (mm) | 30,93 mm |
| Connection thread (total) | 30,93 mm (1 Zoll) |
| Connection thread (mm) | 33,25 mm |
| Connection thread (total) | 33,25 mm (1 Zoll) |
1 Stück
