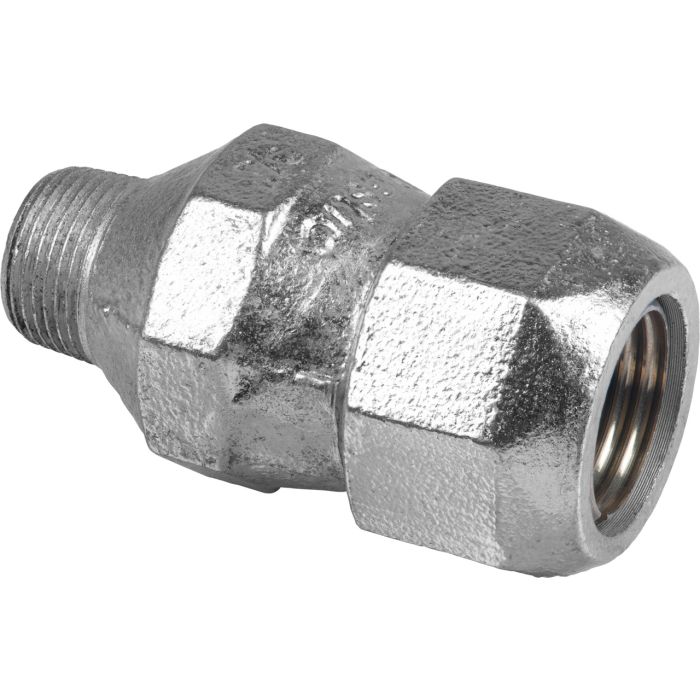

Clamp fitting Verschraubung, Malleable cast iron galvanized, Ø 26,44 mm x 3/4 inch ET
Art. Nr.:
VZKVAG34
EAN:
4035300988570
- DVGW geprüft nach Arbeitsblatt W534
- Für Trinkwasserinstallation, Heizung und Druckluft geeignet
- Geeignet für Stahlrohre nach DIN EN10255
Malleable cast iron galvanized · Suitable for drinking water installation, heating and compressed air · The screw connections are approved for drinking water up to 25 °C · Suitable for steel pipes according to DIN EN 10255 · Max. Operating pressure: Water 16 bar , Compressed air 12,5 bar · Max. Temperature range is 80 ° C · DVGW tested according to worksheet W534 · 3/4" ET
| Connection thread (inch) | 3/4 inch |
| Connection thread (mm) | 26,44 mm |
| Connection thread (total) | 26,44 mm (3/4 Zoll) |
| Einsatzbereich | Pipelines |
| Ausstattung | without sleeve |
| Ausführung | Transition connection |
| Montage | Clamping connection |
| Diameter (Ø) | 26,44 mm |
| Gewindeart | ET |
| Surface | galvanized |
| Material | Cast iron |
| Material specification | Malleable cast iron |
| Dimension | Ø 26,44 mm |
| Article type | Fitting |
| Connection thread (mm) | 26,44 mm |
| Connection thread (total) | 26,44 mm (3/4 Zoll) |
1 Stück
